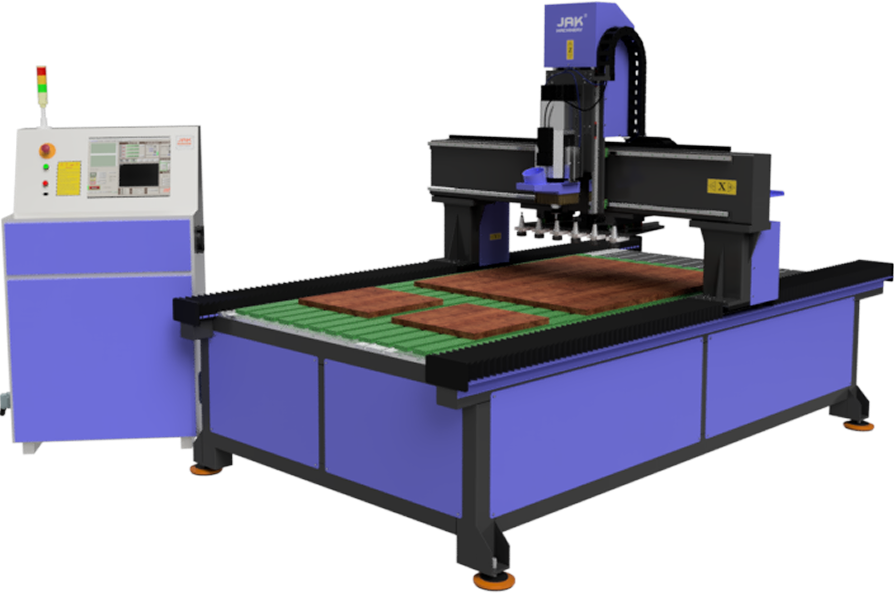

Auto Tool Changing CNC Router. Multi-step jobs that require different tools, such as drilling, routing, and engraving, in a single run, expanding user capabilities and creative product making skill.
Change the Tool Automatically in single program
Collect 95% Dust though Dust hood
Planetary Gearbox and Servo motor
| Operations | D Profile Cutting and Pocketing, Drilling, 3D Carving, 2.5D Carving(V Carving) |
| Bed Size | 4x8 Feet (Customizable) |
| Max Material Thickness | 3 inch (Customizable) |
| Carving Spindle Type | ATC (Automatic Tool Change) |
| Spindle Specification | 9 kW Air Cooled, 18000 rpm, ISO30, ER32 |
| Bed Type | T-Slot Aluminum / Vacuum Bed / Hybrid |
| Axis Motion Motor | Servo Motor |
| Max Rapid Speed | 14000 mm/min |
| Position Accuracy | 0.05 mm (50 Micron) |
| Number of Axis | 3 Axis |
| Controller | NK105 / Mach3 LAN |
isolating the control drives from the power source
Showing the Machine position if running, Stops or Emergency State
Navigate the Oil from Pump to Rail Bearings in one minute
Connected Heavy duty Fabricated Base Structure
PnF Make High Quality Sensors
High Quality Flxible Cable for 10 million Cycles
Our over important Plates passed with VMC Milling and Drilling
High precision Gearbox for high rigidity on fast movement
Automatic On off Dust hood during the operation
10 second for loading and 10 second for unloading
Fast Moement of Z Axis
2 Different Spindle for quick Tool Change, Tool Change time 5 Second
Linear Tool Magazine for Pick and place 6 different tools. Tool Change time 15 Seconds
Hybrid table with Vacuum and T Slot. This helps for faster clamp and declamp using vacuum pump.
Roller Press useful for Bent Panel board, Specially need for grooving or Half Cut.
Add Tenon Table for Wood joinery. We use Parameterized Technology for tenon manufacturing.
