JAK CNC Router are Faster , Robust and Loaded with all Latest Feature.
Machine have Sensor for accurate Surface Zero.
Our CNC Router can reach to 20 meter/minute , thanks to Perfect Machine Alignment and robust Gearbox.
All Axis Motor are Pure Servo Motors

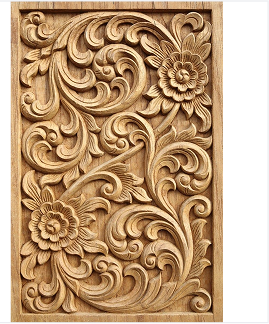

| Operations | D Profile Cutting and Pocketing, Drilling, 3D Carving, 2.5D Carving(V Carving) |
| Bed Size | 4x8 Feet (customisable) |
| Max Material Thickness | 3 inch (Customisable) |
| Carving Spindle Type | MTC (Manual Tool Change) |
| Spindle Specification | 4.5 kW / 6 kW Air Cooled, 18000 rpm, ER32 |
| Bed Type | T-Slot Aluminum / Vacuum Bed / Hybrid |
| Axis Motion Motor | Servo Motor |
| Max Rapid Speed | 14000 mm/min |
| Position Accuracy | 0.05 mm (50 Micron) |
| Number of Axis | 3 Axis |
| Controller | NK105 / Mach3 LAN |
isolating the control drives from the power source
Showing the Machine position if running, Stops or Emergency State
Navigate the Oil from Pump to Rail Bearings in one minute
Connected Heavy duty Fabricated Base Structure
PnF Make High Quality Sensors
High Quality Flxible Cable for 10 million Cycles
Our over important Plates passed with VMC Milling and Drilling
Double Production using two separate Spindle head.

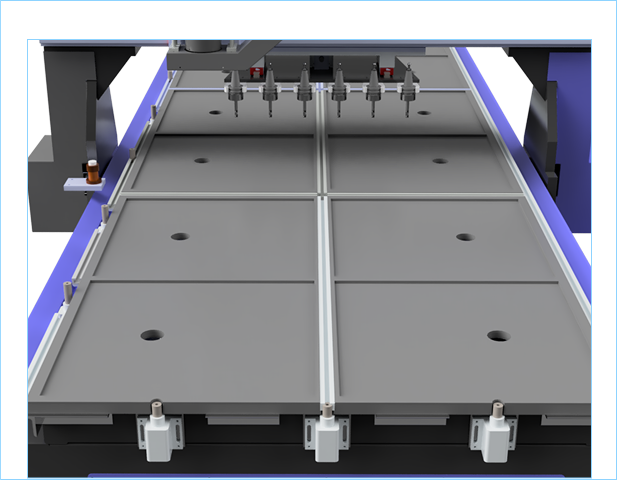

Hybrid table with Vacuum and T Slot. This helps for faster clamp and declamp using vacuum pump.

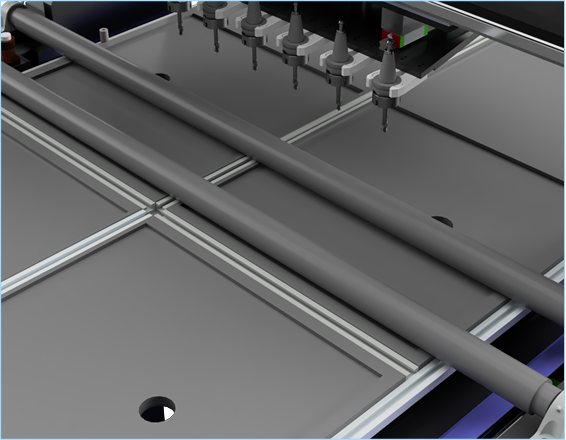

Roller Press useful for Bent Panel board, Specially need for grooving or Half Cut.

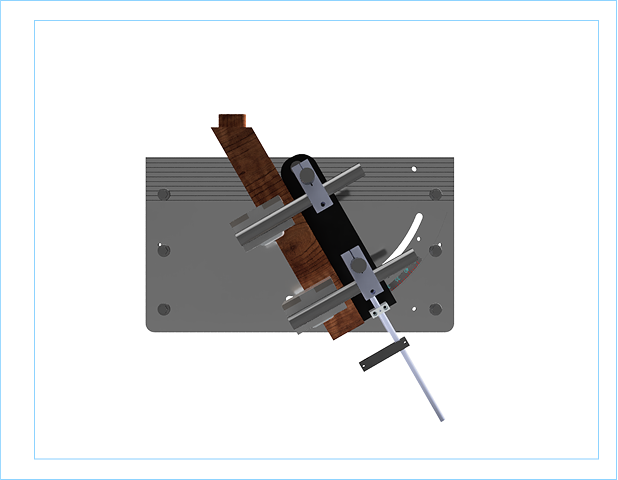

Add Tenon Table for Wood joinery. We use Parameterized Technology for tenon manufacturing.
